Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket

Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW3MPB

Type : led display connector

Application : Power

Gender : Female

Industrial electronics : accessories

MOQ : 2 pieces

Price : CN¥6.45-14.32/pieces

Contact Now

Products Description
Power connector series-female powercon(output port)
This series is widely used in indoor rental LED display power connection.
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket

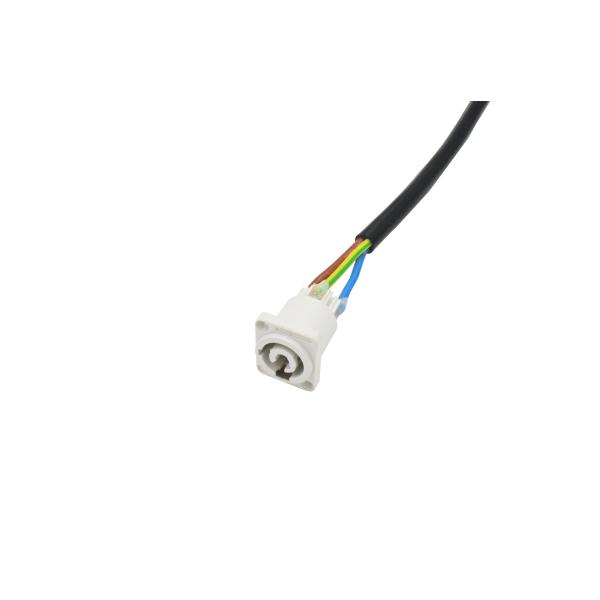

Model: SW3MPB ( indoor use/white output )
Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
high current capacity, rated at 20A/250V AC
Quick and simple locking system, the keys are firm and do not fall off
Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
Quick, simple locking system
Connect reliably
Use different color design to distinguish signal input and output, blue input, white output
Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
1.Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
>1000MΩ
2.Mechanical parameters
Service life
>1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3.Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP44
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
5.Installation reference drawing
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
Application area
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
Company Information
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
Patent & Certification
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
Exhibition activities
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
Packaging reference
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
Payment and logistics
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
FAQ
Industrial Electronics Accessories Female Powercon Audio Video Connector 3-Pin for Indoor IP44 LED Display Screen 20A Socket
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
