Stable Circular Female And Male Connector 250V AC Power Connector

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW3FCB

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 2 pieces

Price : $1.10 - $2.00/pieces

Type : led display connector

Name : Circular Female And Male Connector

Application : Power

Gender : Male

Industrial electronics : accessories

Contact Now

Stable Ip44 Indoor Lockable Triple Core 250V AC Connector Female And Male Connector

Application range:
LED display, Audio equipment, street lighting, electrical equipment, automation machine, electric vehicle.

Products Description
Power connector series-male powercon(output port)
Stable Circular Female And Male Connector 250V AC Power Connector
1. Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2. Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3. Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP44
Temperature range
-30°C to +80°C

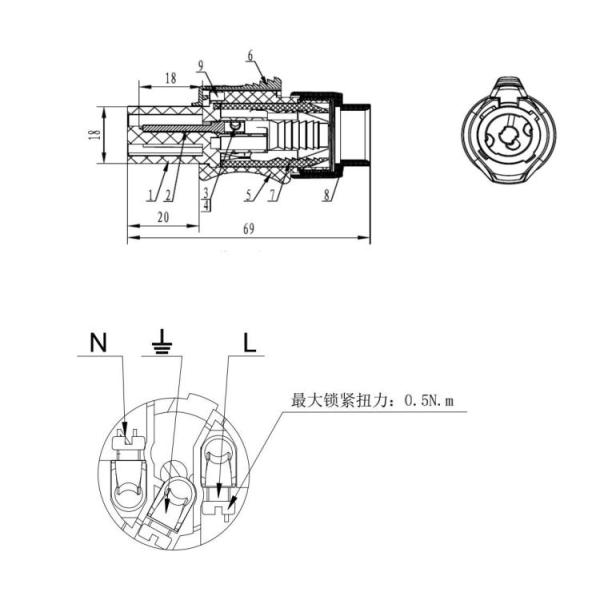

4.Size reference (unit /mm)
Stable Circular Female And Male Connector 250V AC Power Connector
5. Installation reference drawing
Stable Circular Female And Male Connector 250V AC Power Connector
Stable Circular Female And Male Connector 250V AC Power Connector
Application area
Stable Circular Female And Male Connector 250V AC Power Connector
Company Information
Stable Circular Female And Male Connector 250V AC Power Connector
Patent & Certification
Stable Circular Female And Male Connector 250V AC Power Connector
Exhibition activities
Stable Circular Female And Male Connector 250V AC Power Connector
Packaging reference
Stable Circular Female And Male Connector 250V AC Power Connector
Payment and logistics
Stable Circular Female And Male Connector 250V AC Power Connector
FAQ
Stable Circular Female And Male Connector 250V AC Power Connector
1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

3. Do your products come with warranty?
A: Yes,we promise 1-3 year warranty according to different model.
